    Temporary pacing catheter (bipolar)

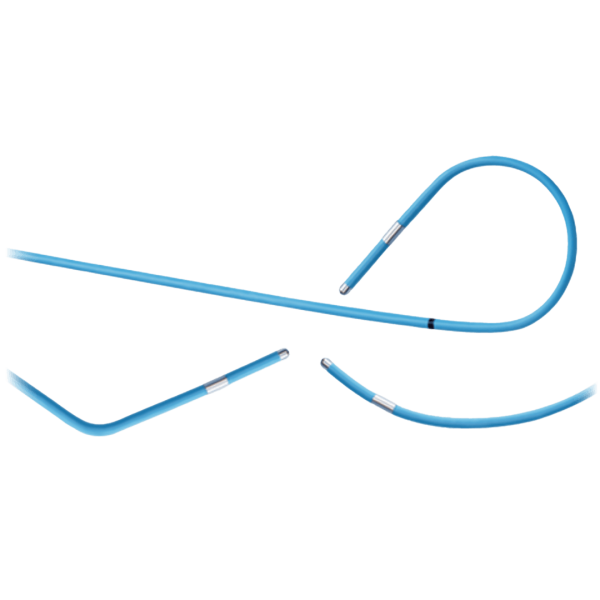

    The All-Rounder Bipolar Temporary Pacing Catheter enables effective temporary cardiac pacing using external pacemakers. It is available in straight or J-curve versions to facilitate placement on the atrial septal wall.

    Temporary pacing catheter (bipolar)

    Temporary pacing catheter (bipolar)
    Temporary pacing catheter (bipolar)

    The All-Rounder Bipolar Temporary Pacing Catheter enables effective temporary cardiac pacing using external pacemakers. It is available in straight or J-curve versions to facilitate placement on the atrial septal wall.


    This temporary pacing catheter (bipolar) features 2 mm pin connectors compatible with most external pacemakers on the market. It offers a bullet-shaped tip configuration, is manufactured with radiopaque materials, and its design provides standard flexibility to facilitate clinical handling. The temporary pacing catheter (bipolar) fixed connector system includes tactile protective caps for a secure and stable connection.

    Features

    • Type: TB-FX / TB-FX J
    • Diameter: 4F (1.33 mm), 5F (1.67 mm), 6F (2.00 mm)
    • Effective length: 90 cm or 125 cm
    • Tip configuration: bullet-shaped
    • Number of electrodes: bipolar
    • Electrode width: 5 mm
    • Electrode material: stainless steel
    • Cable material: radiopaque Pebax (shore 70/40)
    • Flexibility: normal, standard
    • Connector: 2 mm pins with tactile protective caps

    Other data

    • Compatible with all common external pacemakers
    • Easy placement in straight or J-shaped positions for enhanced precision
    • Radiopaque design that improves visibility in guided procedures
    • Secure connection thanks to the fixed connector with tactile protection
    • High reliability in temporary stimulation

    Technical data sheet
